Issue:I have problem generating proximity remote with Xhorse VVDI Key Tool. I put remote with battery inside antenna and when I push generate it says internal error.

Problem was SOLVED.

I had upgraded firmware from 3.3.2 to 3 3.4 and proximity remotes works perfect.

Alright, although Xhorse VVDI Key Tool discontinue producing and replaced byVVDI MINI Key Tool, if you have any questions, you will be served.

any further questions,please feel free to contact us:

Skype: xhorsevvdi.com
Whatsapp: +86-13983756354

https://www.xhorsevvdi.com/

Posted by: xhorsevvdi at 02:25 AM | No Comments | Add Comment
Post contains 89 words, total size 2 kb.

It’s so easy to use Xhorse VVDI Key Tool Max with Dolphin XP005 Key Cutting Machine to Program all keys lost for Suzuki Swift

Here you are:

Connect VVDI Key Tool Max and Dolphin XP005 key cutting machine via Bluetooth for smart control, prepare an original key and a new one for ready, then get to start:

All Key Lost>>Suzuki>>input the number 5024>>SZ21RP

Please follow "Clamp type” to align M1 clamp tip to 2 position, this type recommend use 1.5mm to cut.

Key fixed: clear metal filings and use your finger to press the blank key on the clamp and make sure it is flat

Select "Cutting key” and continue to make sure the cutting depth.

Then Start cutting key using Xhorse Dolphin XP005 automatically.

Posted by: xhorsevvdi at 06:09 AM | No Comments | Add Comment
Post contains 141 words, total size 8 kb.

Confirmed! The Xhorse VVDI KEY TOOL MAX can be used to connect with dolphin xp005 key cutting machine to program Mahindra Bolero all keys lost

Firstly, please bind VVDI Key Tool Max with Xhorse Dolphin XP005 via Bluetooth.

In Key tool max menu, switch to Condor Dolphin XP-005 page, then connect with Dolphin XP005 via Bluetooth.

Part 1. Operate VVDI Key Tool Max:

Tap"Key Lost” ->> Mahindra ->> Enter code "5670”

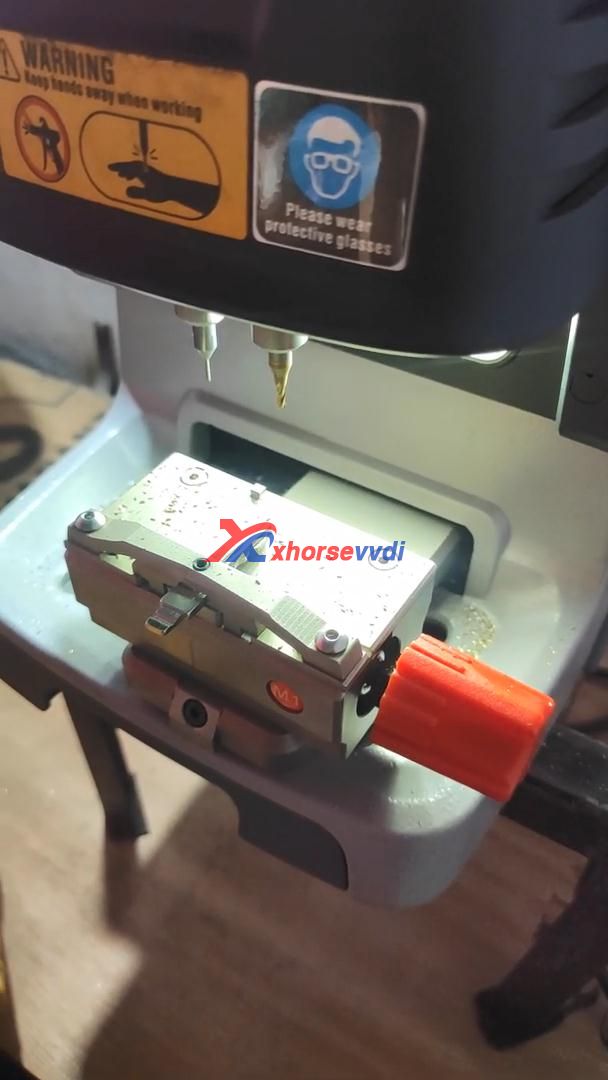

Please follow "Clamp type” to align M1 clamp tip to 2 position, this type recommend use 1.5mm to cut.

Select "Cutting key” and continue to make sure the cutting depth.

Part 2. Start cutting key using Xhorse Dolphin XP005 automatically.

Alright, it’s so easy to useVVDI Key Tool Maxtogether withXhorse Dolphin XP005to cut a key.

http://blog.xhorsevvdi.com/cut-mahindra-bolero-all-key-lost-using-vvdi-key-tool-max-dolphin-xp005/

Posted by: xhorsevvdi at 06:51 AM | No Comments | Add Comment
Post contains 139 words, total size 5 kb.

Used Xhorse VVDI Key Tool Plus for Range Rover sports 2016/2017 add key successfully by OBD using together with Xhorse Smart Remote.

ForXhorse VVDI Key Tool Plus,Key Tool Max,Xhorse smart remote,

contact at Skype: xhorsevvdi.com
Whatsapp: +86-13983756354

http://blog.xhorsevvdi.com/vvdi-key-tool-plus-range-rover-sports-2016-2017-add-key/

Posted by: xhorsevvdi at 09:04 AM | No Comments | Add Comment
Post contains 50 words, total size 3 kb.

UsedXhorse VVDI Key Tool Plusto program 2011 Porsche Cayenne All Lost Key, take about 25 mins in total!

PreparePorsche BCM adapter XDNP17, which I already put it on the board.


VVDI Key Tool Plus read D-FLASH successfully, and tick off"Save and edit" and then "OK".






Back to tap "immo programming", then select "Europe" and "Porsche", then "New Porsche key-generate dealer key", tap "Start Programming".



Tap "Generated key", then "EEPROM (5M48H)".



Tap "OK" to load the EEPROM data.

Select "Key 4".

It prompts "Don't detect transponder. Please input key first!".


After putting key first, tap "Generated key", then "EEPROM (5M48H)", then tap "OK" to load the EEPROM data.
Select "Key 4" to make key.

Click "OK" to save new eeprom data.


Generated key successfully. Just refresh the newly saved file to the car. You can also learn the new key to the car via OBD!

If you want to add new key, please use the newly saved file to generate.


Job is done!

Source:https://www.xhorsevvdi.com/service/program-2011-cayenne-all-lost-key-by-vvdi-keytool-plus.html

Posted by: xhorsevvdi at 03:13 AM | No Comments | Add Comment
Post contains 175 words, total size 4 kb.

Question: How to get key cutting bitting from photo, Skoda hu66 gen1 i assume







The answer is 12242124 (key cutting bitting)



Good to know:

The key code is on the tag. Just put it into instacode or the xhorse app.



xhorsevvdi.com wrote an article on how to find bitting with Condor XC-Mini Plus key cutting machine, here you can refer to:

http://blog.xhorsevvdi.com/how-to-find-bitting-with-condor-xc-mini-key-cutting-machine/



There is a option "Find Bitting", enter it and select car make to confirm, then select key type. Enter the bitting you know. Enter the unkown bitting as "?" and click on "Find Bitting Code".

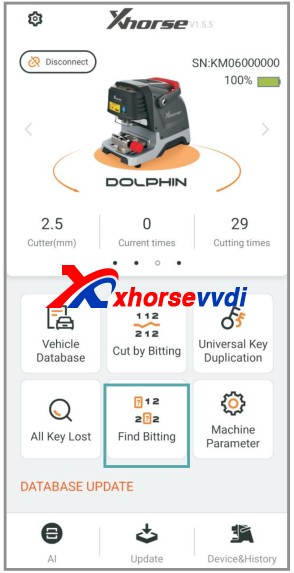

Next part is about how to get cutting bitting with Dolphin XP-005.

Enter Dolphin main menu

Select "Find bitting"





Select a car make.





Select or put in the key blank type.





Put the known bitting and replace unknown bitting as "?".

Then click on "Find Bitting"





Final part is to use the key bitting to make key, here take Dolphin XP005 for example:



Click on "Cut by Bitting".





Choose a key blank type.





Choose the key type.





Follow the picture show to fix the key.



Select proper side of clamp and fix the key in correct position



Put in the key bitting and check all the information before you click on "Cutting key" for making new key.



Good luck!


Have Condor Mini Plus and Dolphin XP005 at www.xhorsevvdi.com
