1. 2013-2019 A4L /A5/Q5 add key and all key lost
2. 2013-2019 A6L /A7/A8 get BCM2 immo data while all key lost (Synchronize data can get from 3rd service provider)(Add key can get BCM2 immo data directly via OBDII)

• Warning 1 :This function is high risk, all the consequences caused are undertaken by yourself
• Warning 2: In VVDI-PROG function, Don’t touch power supply, cable, BCM2 module!!!

VVDI-PROG data instructions:

• DATA1: VVDI2 stepl require data, you can read DATA1 after connect in VVDI-PROG
• DATA2: VVDI2 step2 require data, you can read DATA2 after you get instructions in VVDI2(load DATA1 in stepl)
• SERVICE-DATA: you can get this data in step2. Write this data to BCM2 activate module
• DATA2-BACKUP: If read DATA2 failed(cause by power or cable), you can use this function to get DATA2 data

• First use OBD Read Version function, OBD read BCM2 version and check support status
• Open trunk: Find the BCM2 in right-rear area, remove the two big plug, then small one(DON'T close trunk)
• Connect VVDI-PROG and BCM2 module, VVDI BCM2 adapter require support +12V
• Enter VVDI-PROG->immobilizer->Audi->LOCK_BCM2-1 orLOCK_BCM2-2 read DATA1 data and save it(Depends on the SW version)
• Enter WDI2 stepl, load DATA1 data(require internet), continue with VVDI2 instructions (maybe not need DATA2)
• If VVDI2 ask you provide DATA2, enter VVDI-PROG read DATA2 and save(After read DATA2, BCM2 will enter service mode)
• Enter VVDI2 step2, load DATA2 data(require internet), it will save 2 files: BCM2 immodata and BCM2 service data
• BCM2 immodata can use learn key, BCM2 service data can write to BCM2(make BCM2 work again) with VVDI PRO.
• After write BCM2 service data, restore BCM2 to car.
• Enter 5th immobizer system learn key.

Enjoy!

Learn more:How to connect AUDI BCM2 Adapter withVVDI KEY TOOL PLUSno need solder

Posted by: xhorsevvdi at 09:34 AM | No Comments | Add Comment
Post contains 337 words, total size 5 kb.

Xhorse Multi-function Adapter is developed especially for connecting old adapters such as BOSH ECU adapter, BENZ EZS adapters, etc. to KEY TOOL PLUS and MINI PROG.This is could help avoid purchasing those new accessories coming with KEY TOOL PLUS again and make full use of your old ones.

There're 5 ports in this adapter in total.

1. Connect to KEY TOOL PLUS and MINI PROG

2. Connect to renew adapters

3. Connect to BMW EWS4 adapter

4.Connect to BENZ EZS adapter

5.Connect to BOSH ECU adapter

These adapters all work with different tools from Xhorse, but now together with this Multi-function Adapter, they're all compatible with KEY TOOL PLUS or MINI PROG.With this adapter, there's no need to purchase new adapters specially designed for KEY TOOL PLUS or MINI PROG.

Source:http://blog.xhorsevvdi.com/how-to-use-xhorse-xdkp30-multi-function-adapter/

Posted by: xhorsevvdi at 02:47 AM | No Comments | Add Comment
Post contains 137 words, total size 4 kb.

How to fix Xhorse Condor XC-Mini Plus Error “Cut Fail, 38 (Error Code=3 ”

Condor XC-Mini Plus, I can decode a key but cannot cut a key. The cutter will not spin. I get message on screen"Cut Fail, 38 (Error Code=3 ”.

Solution 1" src="https://www.xhorsevvdi.com/upload/service/21091616317723406221.jpg" />

Solution 2" src="https://www.xhorsevvdi.com/upload/service/21091616317723429551.jpg" /> Solution 3" src="https://www.xhorsevvdi.com/upload/service/21091616317723442877.jpg" />

Solution 4" src="https://www.xhorsevvdi.com/upload/service/21091616317723466174.jpg" />

Solution 5" src="https://www.xhorsevvdi.com/upload/service/21091616317723489808.jpg" />

Solution 6" src="https://www.xhorsevvdi.com/upload/service/21091616317723503998.jpg" />

Posted by: xhorsevvdi at 06:29 AM | No Comments | Add Comment
Post contains 183 words, total size 3 kb.

Q:

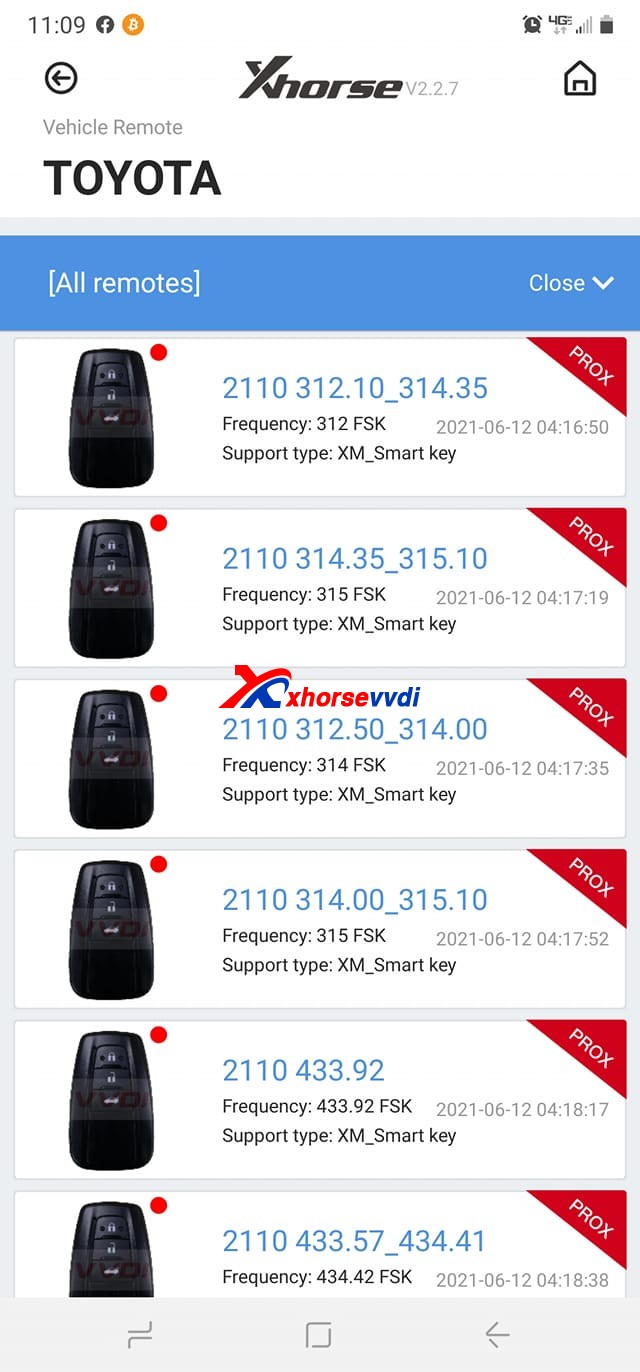

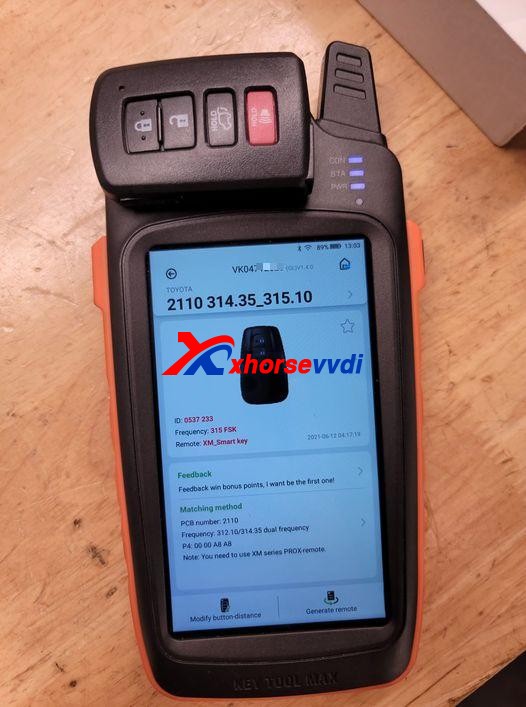

Working on a Toyota Tacoma 2016 smart key board 2110 using VVDI Key Tool Max, Only one option makes the remote work but none has the proximity/smart feature working, Toyota Rav4 2018 the same issue.





Here Xhorsevvdi engineers answer:

Sometimes a smart key generated successfully may not fully function the vehicle: remote doesn’t work, doesn’t have smart feature or even one button fails etc., which needs us to modify smart key’s values manually.



Possible reason:

Xhorse XM smart keys are universal keys, not particular for one model like Toyota Tacoma 2016, so we need to customize XM smart key to find correct values for each car.



Solution:

XM smart key customization by VVDI Key Tool Plus or Key Tool Max.

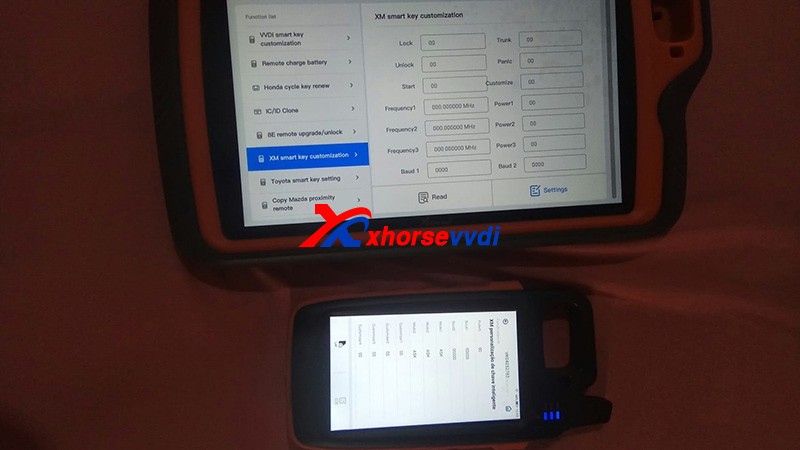

Path: Special Function>>XM smart key customization

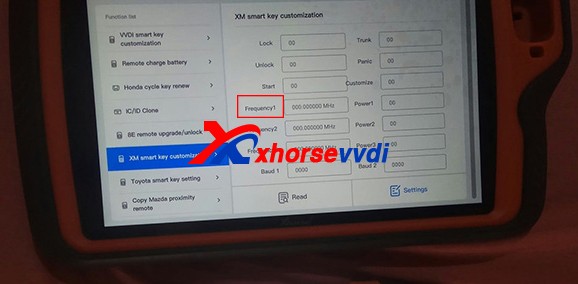

1)Modify Frequency

Sometimes the frequency options given to us is slightly different from that of the smart key to be programmed.

So read out the frequency "A” that your vehicle wants by Xhorse devices, then read original XM smart key frequency "B” and set "B” to "A”.





2)Modify Baud

Read key’s Baud, increase it by 400, and test if it works perfectly.

If not, add Baud again by 400 until it works well. (The last two numbers may vary automatically, which is normal.)





Customer feedback:

I had exactly the same problem with a Corolla 2018, and I just made the changes on the ID and frequency as well and everything works...



Thank Tyler and Raphael for sharing!

Hope this could help!

More info, please check

http://blog.xhorsevvdi.com/fixedkey-tool-max-program-xm-smart-key-prox-feature-doesnt-work/

Posted by: xhorsevvdi at 03:49 AM | No Comments | Add Comment
Post contains 266 words, total size 6 kb.

Problème :Xhorse VVDI2Volvo V70 1998- avec 93С66 et pcf7935.Lors du chargement des données eeprom, les positions libres 4, 5 et 6 ne sont pas disponibles pour l'écriture.Comment résoudre ce problème ?

L'ingénieur principal de Xhorse a répondu:

Générez simplement la clé à partir de la position 1, 2 ou 3.Pas besoin de réécrire les données sur immobox si vous utilisez avec letranspondeurSuper Chip XT27A01 XT27A66;si vous utilisez avec la clé d'origine, vous devez réécrire les données dans immobox.

D'accord, support technique Xhorse VVDI2:http://blog.xhorse.co.uk/

Posted by: xhorsevvdi at 09:34 AM | No Comments | Add Comment
Post contains 95 words, total size 2 kb.
