Question onXhorse VVDI Key tool maxorvvdi mini key tool:how to renew the bmw f series after market key, soldering points please.

How-to guide:

Xhorse VVDI Key tool max or vvdi mini key tool can’t renew the After Market Key, because it may be unstable, if it is anXhorse smart remote, it can burn the data without renewing.

Also, someone reports:

Desolder the pcf and insert in the adapter. Already done.

As for Huf-F Series 868MHz, it is not available yet, please use therenew cableto desolder instead.

http://blog.xhorsevvdi.com/renew-the-bmw-f-series-after-market-key-with-key-tool-max/

Posted by: xhorsevvdi at 03:45 AM | No Comments | Add Comment
Post contains 100 words, total size 3 kb.

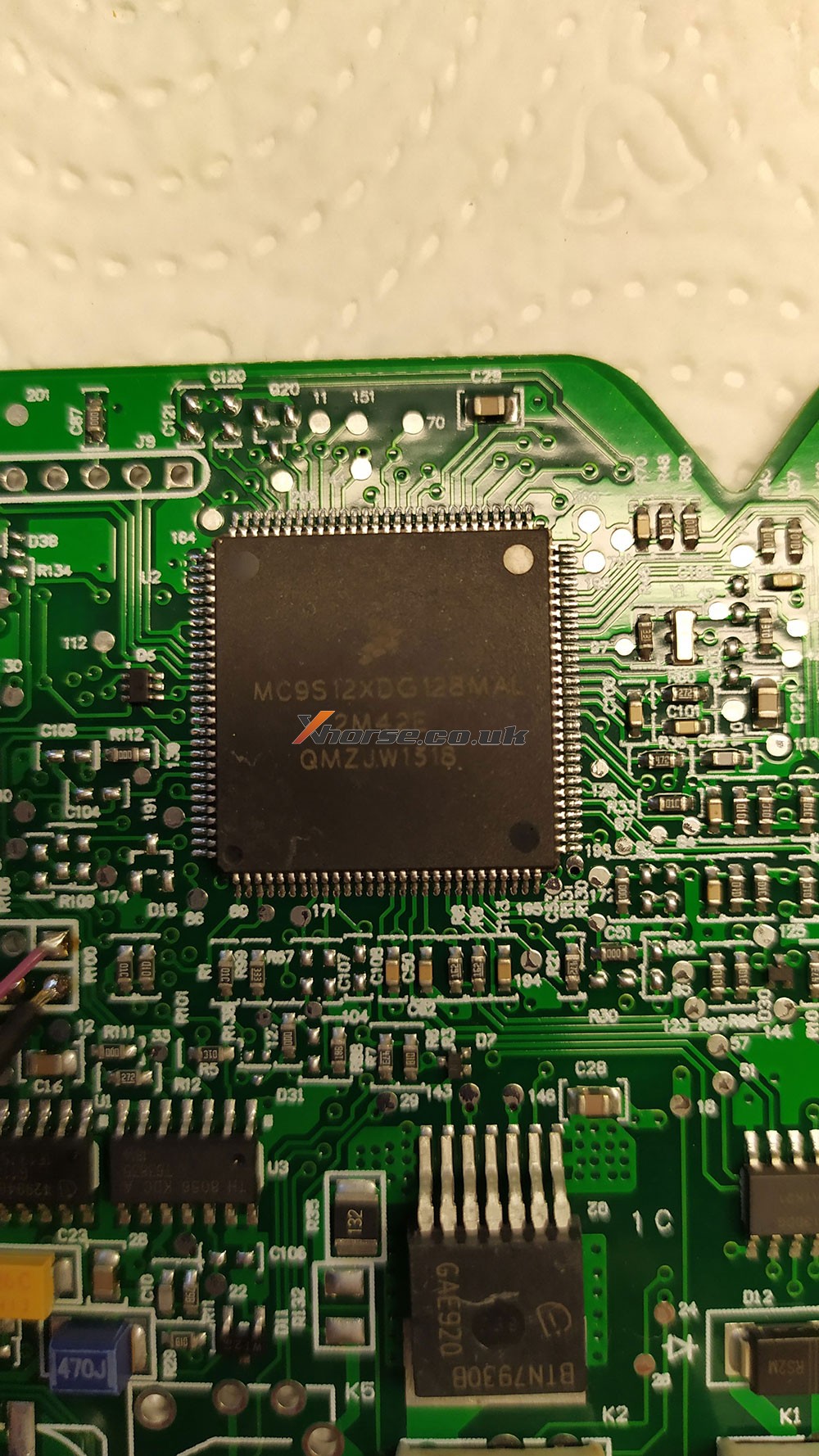

Opel Insignia 2011 year

Body R/W VVDI PROG

Pinout for all of you

Mask 2M42E

MC9S12XDG128MAL

VVDI PROG Ford fiesta 2017 Pinout





VVDI PROG PSA SPC560 Pinout





Renault / Dacia SPC560

Pinout xprog edit for vvdi
Test ok





Opel SPC 56AP54x
Pinout CPT edit for vvdi prog




Fiat 500 L
MPC/SPC
CPT edit for vvdi prog

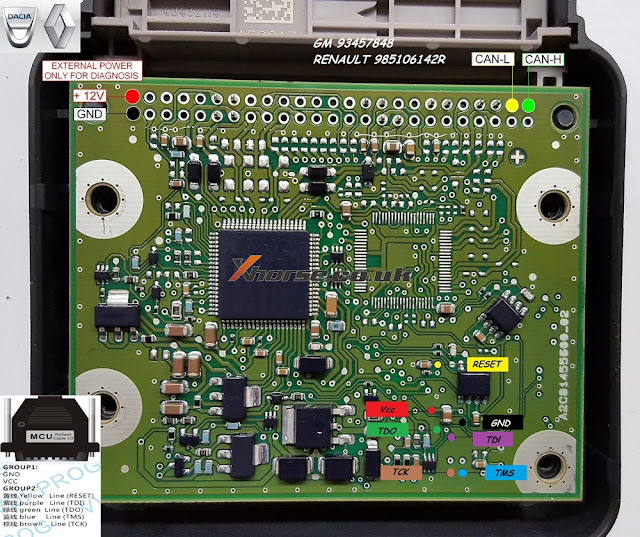

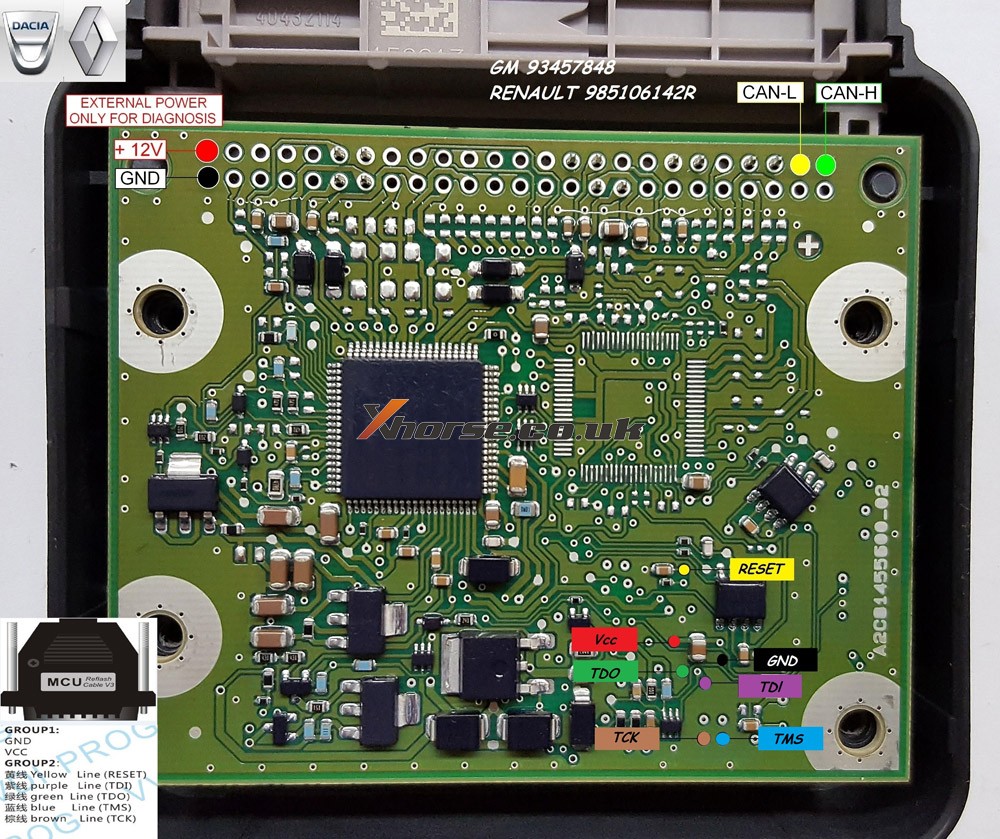

Dacia / Renault v2
pinout CPT edit for VVDI prog

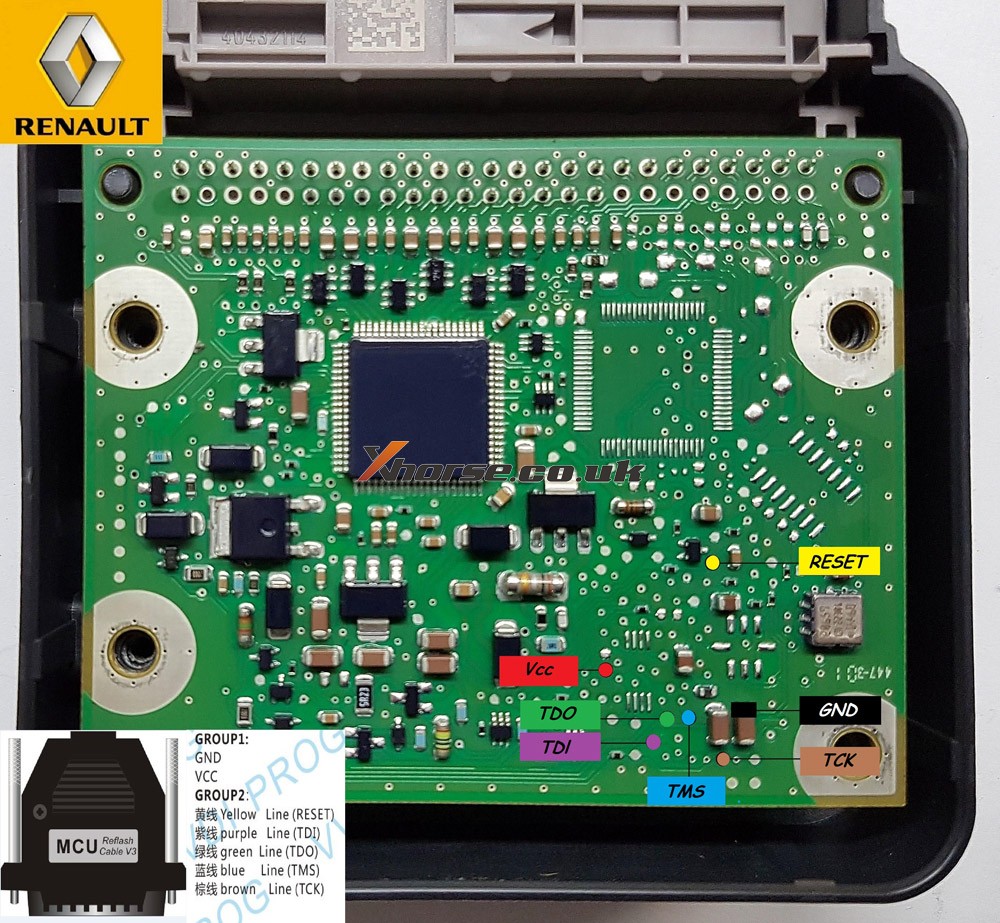

Dacia /Renault v3
pinout CPT edit for vvdi prog





Skoda SPC5604-114pin
pinout CPT edit for VVDI prog





Kia NEC
pinout CPT edit for VVDI prog





VW renesas v850
pinout CPT edit for VVDI prog




Citroen C3 SPC560





MB_W222_SRS_SPC560P5_jtag





Suzuki_SRS_SPC560P50_pinout





Chrysler MPC SRS









Source:http://blog.xhorse.co.uk/vvdi-prog-pinout-for-opel-ford-psa-etc/

Posted by: xhorsevvdi at 02:45 AM | No Comments | Add Comment
Post contains 118 words, total size 11 kb.

Lost 2 sets of key fobs of my AUDI TT 2003 and I want to have the tools to program the keys and the remote. Which key programmer?

Experience for sharing:

Xhorse iscancar supervag 3.0 (red tool) will both extract the SKC code and add the keys.

If you want a more up to date tool thenXhorse Iscancar MM-007(Grey tool) is the one to get.

www.xhorsevvdi.com

Posted by: xhorsevvdi at 02:19 AM | No Comments | Add Comment
Post contains 78 words, total size 1 kb.

Tutorial of how to use Xhorse VVDI MB program ESL for 09 Mercedes C300 W204 here:

Main Steps:

1. Calculate the key password
2. Load the EIS data on the ESL interface and paste the key password.
3. Tick off "Auto clear TP and personalized” and then click on "Write”, done.

*Except for the calculation of the password, all other steps are operated on the "ESL Tools” interface.

Please program the simulator in the same method of programming the ESL.

When operating on the car, you need to clamp the K-line cable of the ESL. The ESL has a plug connection with four wires on it. Tear the thinnest harness and clamped with the blue clip of the OBD wire before operation. There is no need to clip K-line cable separately on the platform.

Hope it helps!

http://blog.xhorsevvdi.com/vvdi-mb-program-esl-for-09-mercedes-w204/

Posted by: xhorsevvdi at 02:45 AM | No Comments | Add Comment
Post contains 146 words, total size 1 kb.

This is a quick demo togenerateremote forToyota Camry 2015
Tool option:Xhorse VVDI Key Tool Plus
Blank key Chip:XM-TOY00GL


Theprocedure：
Next is to check original Toyota Remote.
PS: we have the working key.

Path:transponder clone -> read transponder.


It is 8A Toyota Keyless Go learned.

Check frequency.
It isFSK312.1MHZ/314.35 MHZ


Next isremote program - Toyota -All remote - 0020 312.1MHZ/314.35 FSK.

Put XM-Toy00GL PCB into coil antenna hole.
Remote information CB number 0020.

Press [Generate], meanwhile LED on XM PCB flashing.
Calculating required 5 seconds , query after 10 seconds.


Writing data, please wait...
Process time around 1-2 minutes.

Burn success.

Put XM-TOY001 into Toyota smart shell.

Go to program new smart remote.

Firstly, test original remote and new remote.

Then go to:IMMO program -Toyota -select by model.

Camry - 2010 -Smart key system 8A /4D CAN.

Press "Start program".

Select "Read the number of keys".
Please switch ignition on.
The number of registered key:1

Add key.
Please switch ignition on.
The number of registered key:1 , the number of keys that can also registered: 6

Keep touching the ignition switch with sign surface of a registered key, complete the operations within 30 seconds after clicking [OK].

Click [OK] and keep touching the ignition switch with sign surface of a registered key within 30 seconds.

Note: if key sound once, take the key farther away. If key sound twice, it is programmed successfully.

Key registration succeeded!

The number of registered key:2 , the number of keys that can also registered: 5.

Please check if function of remote normal.
Remote function is ok and can start.

Job is done.
